Hydraulic Puller PL1150: Overhead & Underground Cable Pulling Applications
With a 12.8-inch diameter bull-wheel, the PL1150 provides 6,745 lbf (30 kN) of pulling power. The unit offers underground cable installation contractors the ability to pull one rope, up to 1/2 inch (13 mm) in diameter.
Download PDF
Specifications
| Performance | |
|---|---|
| Max pull | 6,745 lbf (30 kN) |
| Speed at max pull | 0.75 mph (1 km/h) |
| Max Speed | 2.0 mph (3 km/h) |
| Note: the basic machine performance is calculated at 68°F (20°C) and at sea level | |
| Characteristics | |
|---|---|
| Bull-wheel diameter | 12.8 in (325 mm) |
| Max rope diameter | 1/2 in (13 mm) |
| Weight (without rope) | 3,240 lbs (1,470 kg) |
| Number of grooves | 7 |
| Suitable for | 1 rope |
| Layout | Single |
| Max reel capacity at 7/16 in (12 mm) | 15,000 ft / 4,572 m |
| Engine | |
|---|---|
| Diesel | 25 hp (18.9 kW) |
| Cooling system | water |
| Electrical system | 12 V |
| Hydraulic Transmission |
|---|
| Closed hydraulic circuit for stepless speed variation in both rotating directions. |
| Dimensions on Trailer | |
|---|---|
| Weight (w/rope) | 4,150 lbs. (1,882 kg) |
| Overall Length | 183 in (4,648 mm) |
| Overall Width | 61 in (1,550 mm) |
| Height | 77 in (1,956 mm) |
Equipment Details
Standard Equipment
- DOT trailer w/stabilizers
- Automatic reel winder
- On board reel winder with automatic level wind,
for reel mod. BOF010 and BOF020 - Hydraulic quick connectors to control a separate reel winder instead of the built-in one
- Reel shaft AXR001
- 2 year Telematic subscription
Optional Equipment
| Description |
|---|

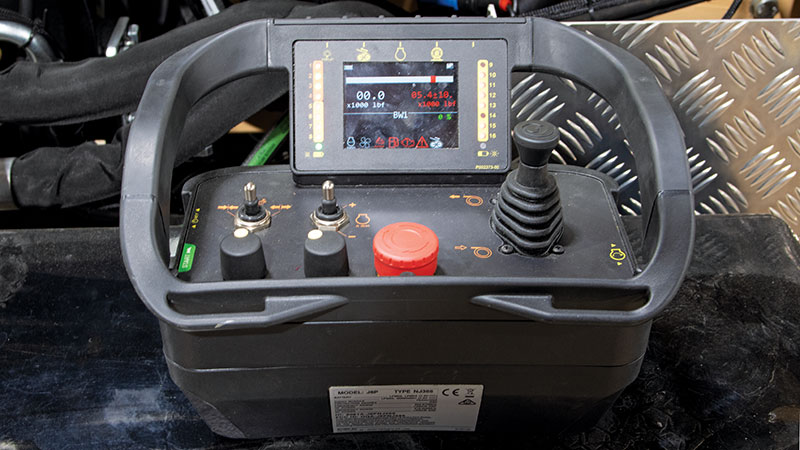

| Radio remote control kit |
| Underground swivel guide rope roller |
| External printer |
| Extra shaft |
